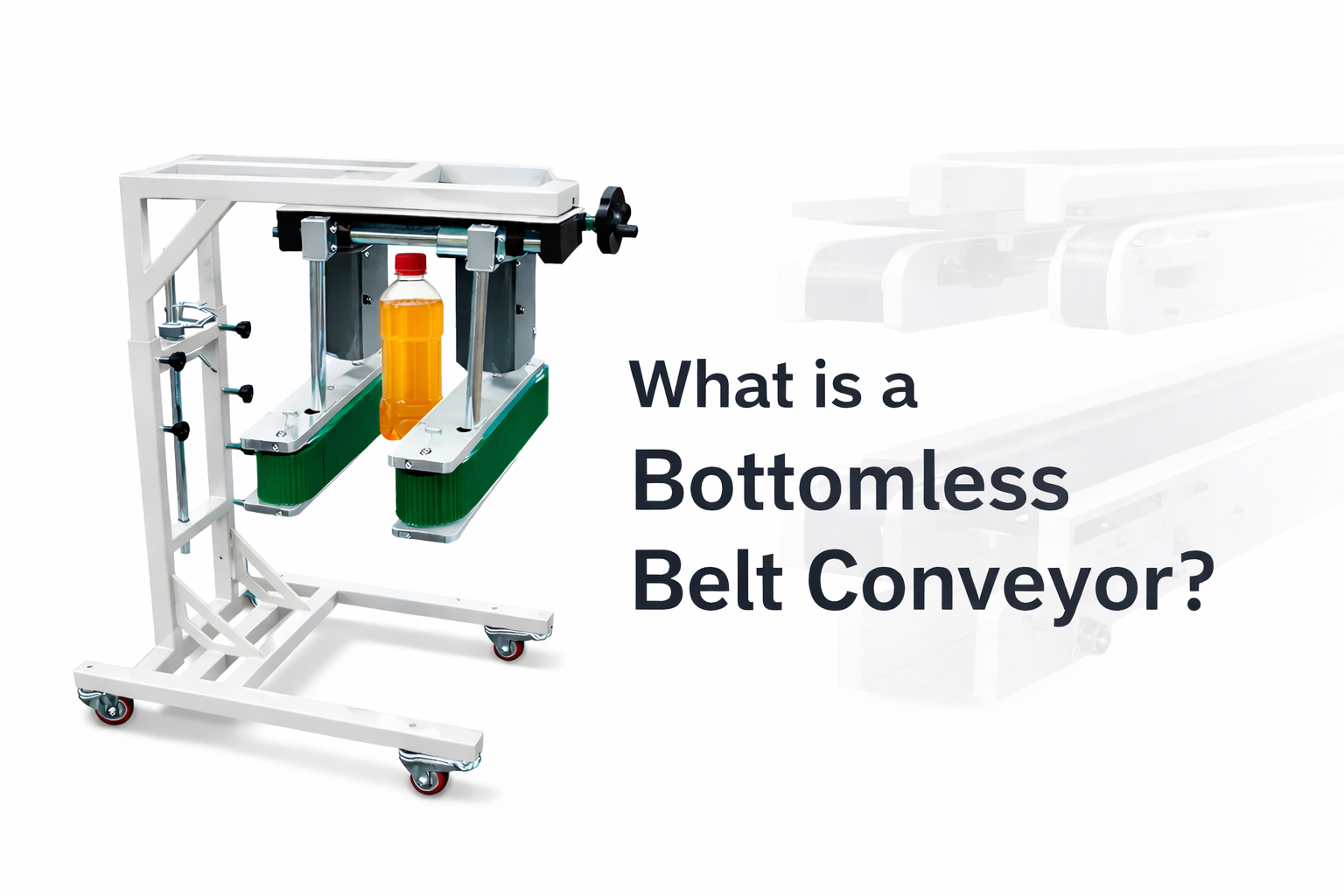

What Is a Bottomless Belt Conveyor?
Bottomless Belt Conveyor Definition
A bottomless belt conveyor is a dual side-grip conveyor that holds products between two parallel belts, allowing unobstructed access to the product bottom during conveying. It is particularly suitable for inline printing, coding, and labeling processes.
Basic Specifications of Bottomless Belt Conveyors
- Typical technical parameters include:
- Product width range: 5 mm – 200 mm (adjustable)
- Conveyor speed: 5–30 m/min (VFD optional)
- Belt material: PU, PVC, or rubber
- Frame material: Aluminum profile or stainless steel
- Grip height: Adjustable based on product size
- Load type: Light to medium (bottles, cartons, containers)
- Minimum product height: Depends on side belt positioning
How Does a Bottomless Belt Conveyor Work?
The bottomless conveyor uses a synchronized dual-belt gripping mechanism.
Core Working Process
- Products enter the conveyor in an upright position.
- Two side grip belts move at the same synchronized speed.
- The belts gently clamp the product from both sides.
- The product is suspended slightly above the base frame.
- Bottom operations (printing, coding, and inspection) occur inline.
- The product exits smoothly to the next process.
Because the bottom remains exposed, this system is essential for bottom coding and labeling lines.
Main Components of a Bottomless Belt Conveyor
Understanding the main parts helps buyers evaluate system quality.
Key Bottomless Conveyor Parts
- Dual side grip belts
- Adjustable side guide assemblies
- Drive motor and gearbox
- Synchronization transmission system
- Conveyor frame
- Width adjustment handwheel or motorized unit
- Belt tensioning mechanism
- Support legs and leveling feet
- Optional sensors and printing mount brackets
High-precision hugger belt conveyor parts ensure stable gripping and smooth transport.
Types of Bottomless Belt Conveyor Systems
Bottomless conveyors can be classified by frame material and structural configuration.
By Frame Material
1. Aluminum Bottomless Conveyor
Lightweight and cost-effective
Easy installation
Widely used in general packaging lines
2. Stainless Steel Bottomless Conveyor
Corrosion resistant
Suitable for food and pharmaceutical environments
Easy washdown and hygienic design
Preferred for high-cleanliness production lines
By Structural Design
• Standard Hugger Belt Conveyor
Most common configuration
Adjustable width
Suitable for bottles and small containers
• High-Speed Bottle Conveyor
Designed for high-throughput lines
Requires precise belt synchronization
Used in beverage and pharma industries
• Bottom Coding Conveyor (Transfer Conveyor)
Integrated with inkjet or laser coders
Optimized for stable product handling
Common in packaging finishing lines
• Adjustable Width Bottomless Conveyor
Quick changeover between product sizes
Ideal for multi-SKU production
Why Use a Bottomless Belt Conveyor?
Compared with standard flat conveyors, bottomless systems provide unique process advantages.
Key Benefits
- Full access to product bottom
- Excellent product stability during coding
- Gentle side gripping (low product damage)
- Easy integration with printers and labelers
- Adjustable for multiple bottle sizes
- Compact inline installation
- Improves coding accuracy and consistency
For many packaging lines, a hugger belt conveyor is the most reliable solution for bottom operations.
When Should You Choose a Bottomless Belt Conveyor?
This system is ideal when:
- You need bottom inkjet or laser coding
- Products are bottles, jars, or rigid containers
- The line requires stable product positioning
- Multiple product sizes must run on one line
- Space is limited and inline transfer is needed
It may NOT be ideal when:
- Products are very heavy
- Products are soft or easily deformable
- Bottom access is not required
- Bulk material conveying is needed
Choosing Reliable Bottomless Conveyor Manufacturers
For high-speed or precision coding lines, selecting experienced bottomless belt conveyor manufacturers is critical.
Key Evaluation Factors
- Side belt synchronization accuracy
- Grip stability design
- Adjustment mechanism precision
- Frame rigidity
- Wear strip material selection
- Integration experience with printers
- Spare parts availability
Experienced manufacturers typically provide:
- Application engineering support
- Bottle testing and trials
- Layout optimization
- Long-term technical service
Many system integrators prefer proven hugger belt conveyor manufacturers because standardized designs reduce project risk and lifecycle costs.
Bottomless Belt Conveyor vs Flat Belt Conveyor
| Feature | Bottomless (Hugger) | Flat Belt Conveyor |
|---|---|---|
| Bottom access | Excellent | Not available |
| Product stability | Very high | Medium |
| Best for | Bottles & coding | General transport |
| Structure | Dual side belts | Single flat belt |
| Cost | Higher | Lower |
| Flexibility | Medium | High |
Conclusion
A bottomless belt conveyor—also widely known as a hugger belt conveyor, bottle conveyor, or transfer conveyor—is an essential solution for modern automated packaging lines that require bottom access for coding, printing, or inspection.
With its precise side-grip design, adjustable structure, and strong line compatibility, it significantly improves coding accuracy and production efficiency. For manufacturers running bottle or container lines, investing in a well-designed bottomless conveyor can deliver long-term operational value.
