NEXDUSTRY ND-ABBC-T Specifications
| Item | Specification |
|---|---|
| Product Name | Bottomless Conveyor – T Type |
| Material | SS 201 Stainless Steel |
| Motor Power | 90W |
| Load Capacity | < 3 kg |
| Conveyor Size | L600 × W50 × H800 mm |
| Adjustable Clamping Width | Minimum 10 mm |
| Running Speed Options | 3–8 m/min |
| Product Weight | 80 kg |
| Control System | Electronic Speed Controller |
| Mobility | Two-claw Support |
| Packaging | Wooden Case |
| Packing Weight | 10 kg |
| Packing Dimensions | 1060 × 630 × 1200 mm |
Side Belt Conveyor Design
Why NEXDUSTRY’s Side Belt Conveyor?

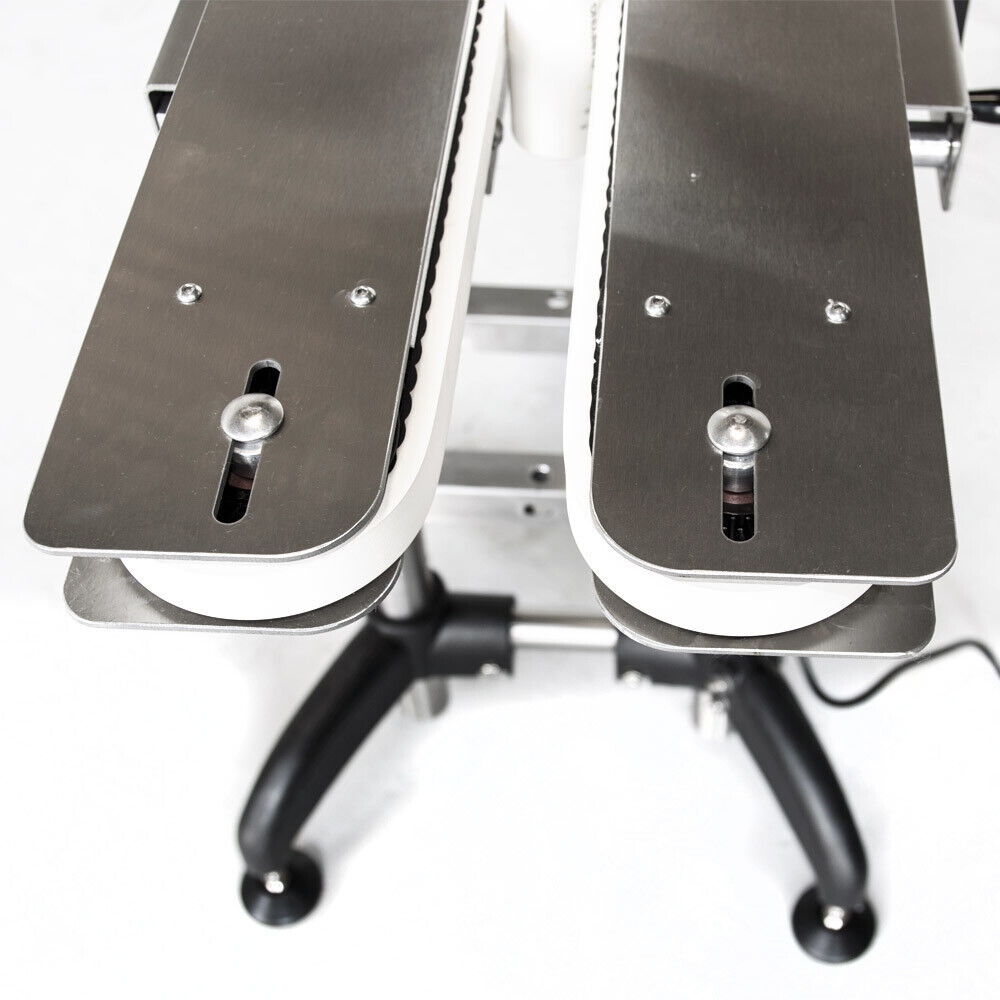

NEXDUSTRY’s T-type side belt conveyor is constructed from durable stainless steel and designed to gently grip products between two parallel, elastic belts. The flexible belts prevent surface marks while applying stable clamping force, allowing products to move smoothly through friction. Compared with C-type bottomless conveyor systems, the T-type is lighter and more compact, making it ideal for conveying small bottles such as perfume, essential oil, cosmetic, and pharmaceutical containers. It is widely used in filling, capping, labeling, coding, and inspection lines where precise, stable side gripping and space efficiency are required.
