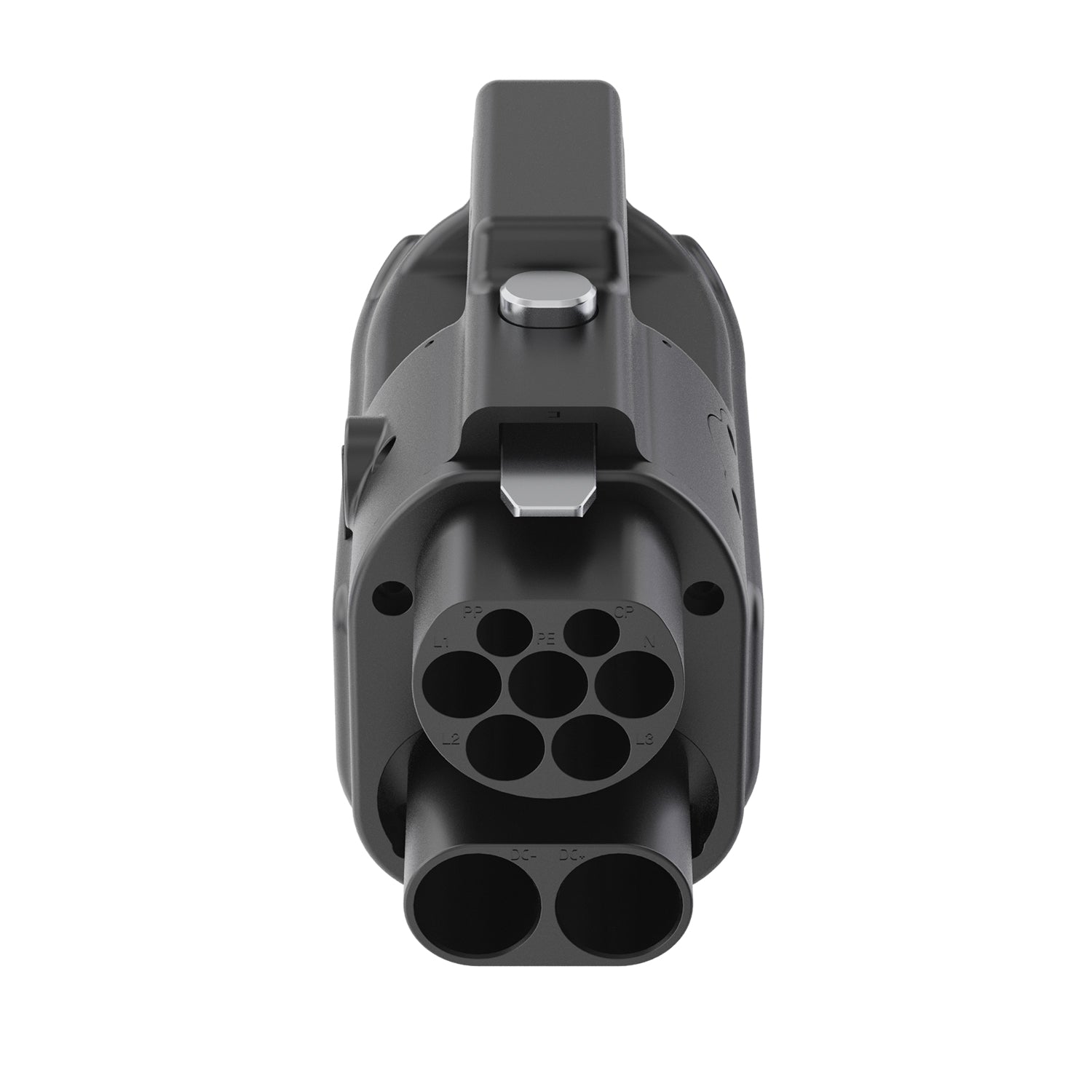

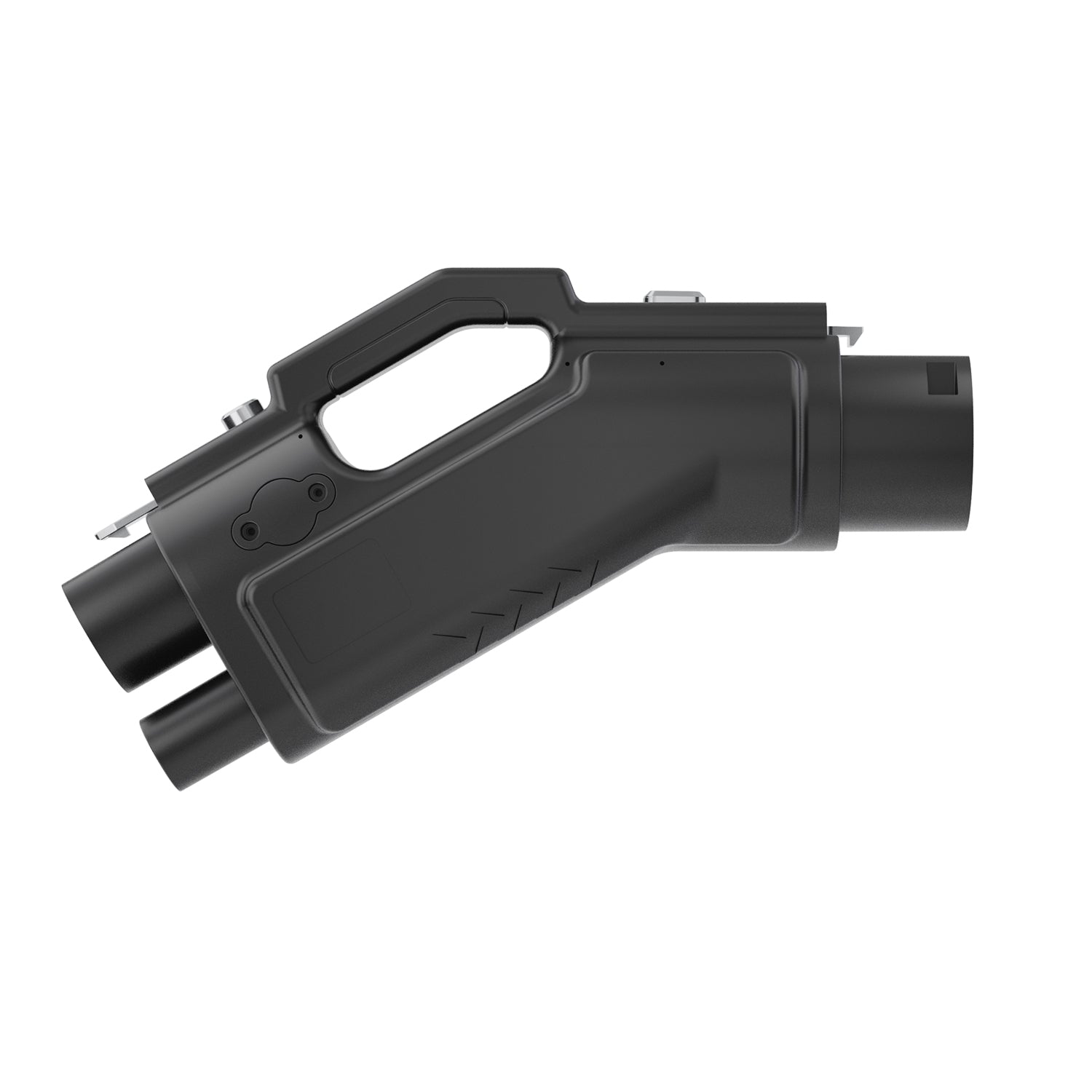

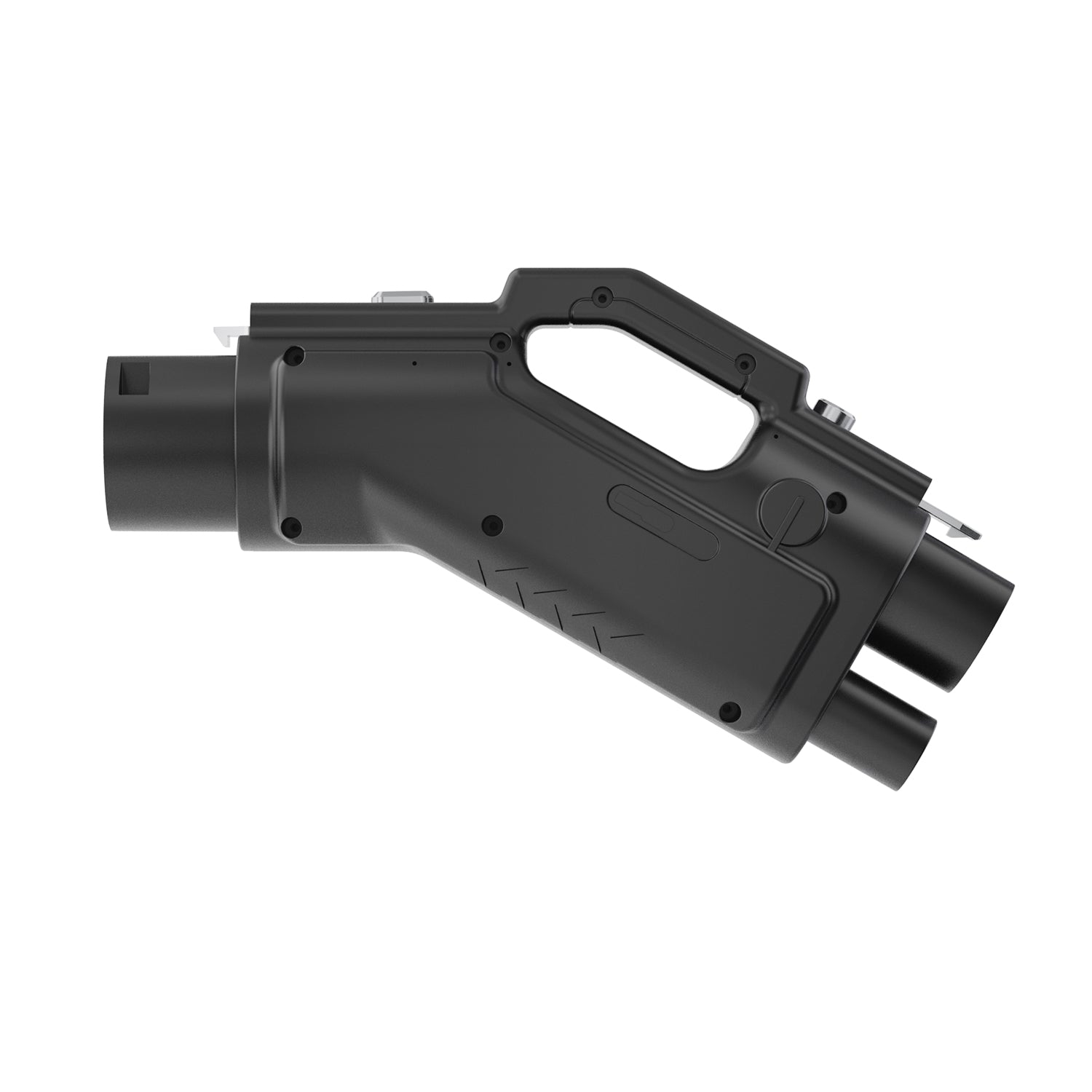

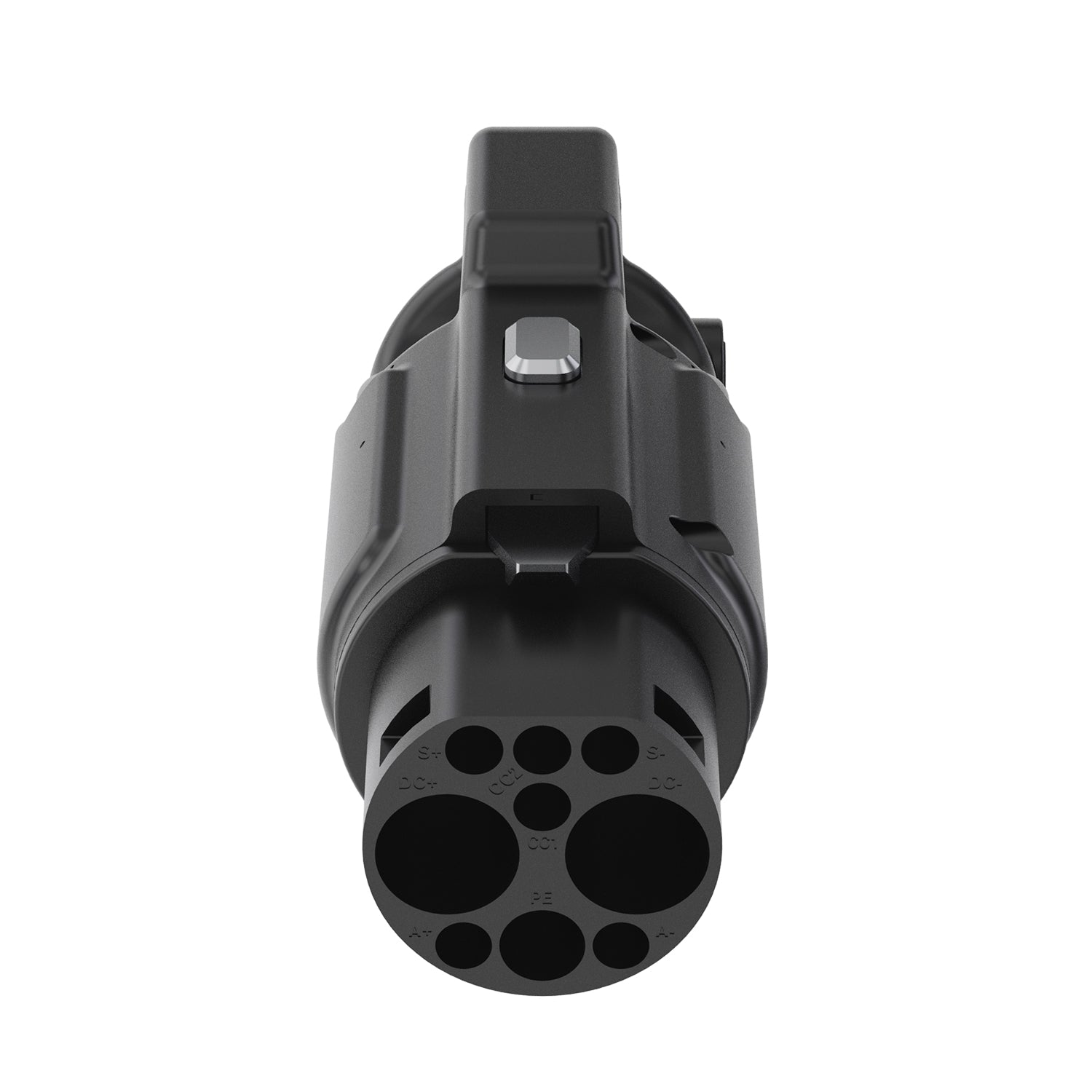

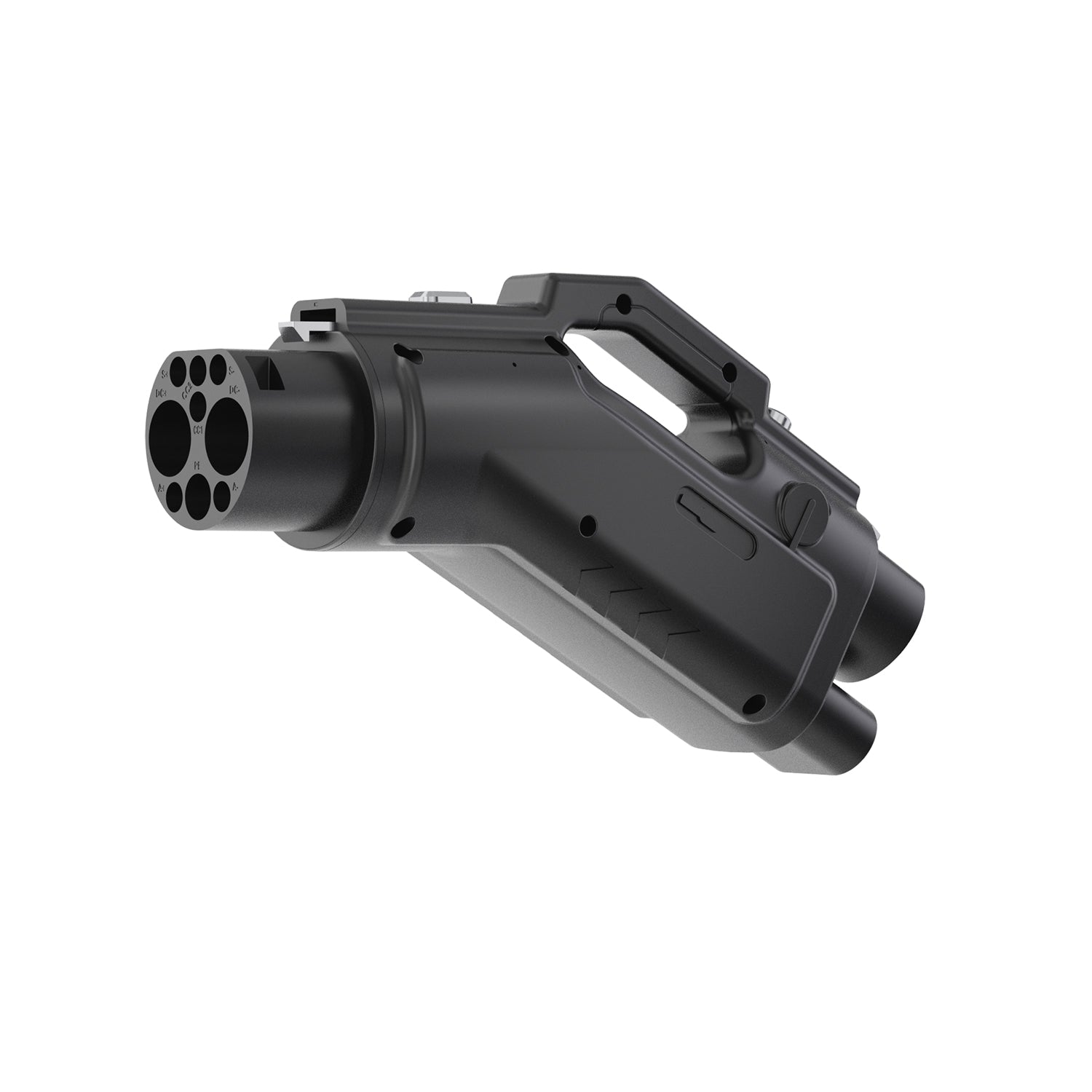

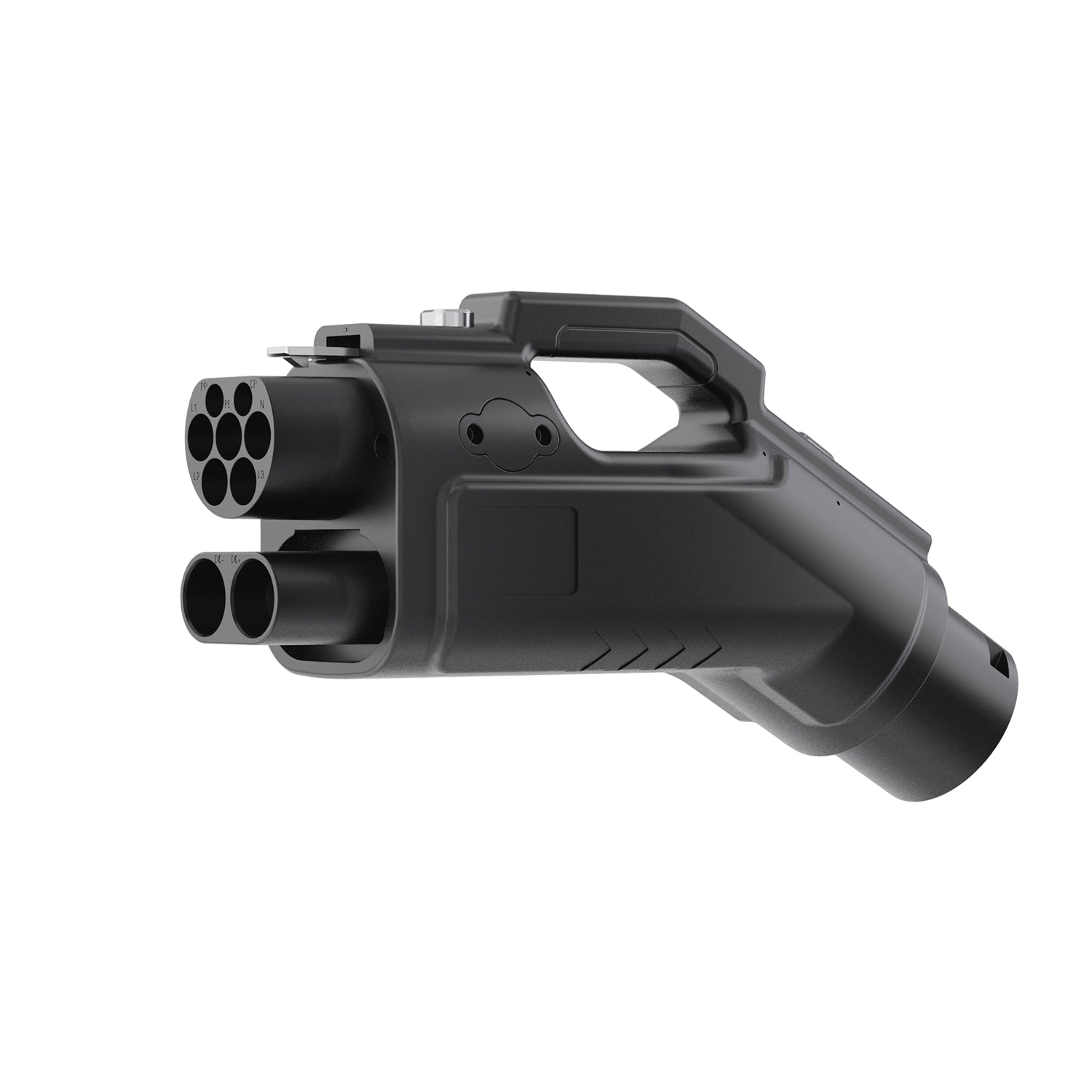

400A CCS2 to GB/T DC EV Adapter Short Description
Seamlessly connect your Chinese-standard Gb/T electric vehicle to European CCS2 charging stations. And it supports Max 400kW charging power, which is the fast on the market.
Unique structural design and special materials allow it to have good temperature control，It features a compact, durable design and intelligent plug-and-charge operation, making electric travel smooth and worry-free.
CCS2 to GBT Electric Car Adapter Mnaual
Features of CCS2 to GB/T Inlet Adapter for Electric Vehicle
1,99.99% Adaptability, Easy to use.
All you need do is just plugging it into the EV inlet, it will works automatically.
2,One cell automobile-used lithium batteries, with suffcient margin power.
Do not worry about battery throughout the adaptor's whole life-time.
Do not worry about battery output power under surrounding -20℃~0℃.
3,Low inner resistance and so low heating power.
Resistance of DC-<140uΩ,DC+<(140+180)uQ when no load.
Paremeters for CCS2 to GB/T Adapter
| Rated Voltage | 1000VDC |
| Rated Current | 400A(MAX) |
| Insulation Resistance | >100MΩ |
| Contact Resistance | ≤0.5mΩ |
| Ingress Protection(IP) | IP54(After coupling) |
|
Terminal Temperature Rise |
<50K |
|
Coupling Insertion /Extraction Force |
<140N |
| Mechanical Durability | No-load mating cycles>10,000 times |
|
Working enviroment Temperature |
-30℃ to+50℃ (with built-in temperature protection:device automatically shuts down when adapter body reaching 85℃) |
| Enclosure | Silicone PC/PA66+25%GF |
| Conductor |
Red copper C1100,Tellurium copper C14500,Silver-Plated |
| Net Weight | 2.1Kg |
| Dimensions | 31×9×18 cm(L×W×H) |
Appclication for CCS2 GBT Adapters
