Short Description of YT-IP2-24-AC1.0-16AS-B portable EV charger
Portable EV Charger can be equiped with different power plug for different market. It is mainly for home use, as long as you got socket in your home.
Sometimes, you have to go somewhere far away and there maybe no EV Charger in the countryside, at this time, portable EV charger can support your car charging. If your car runs out of power on the road, you can use a discharger + portable charger for emergency use.

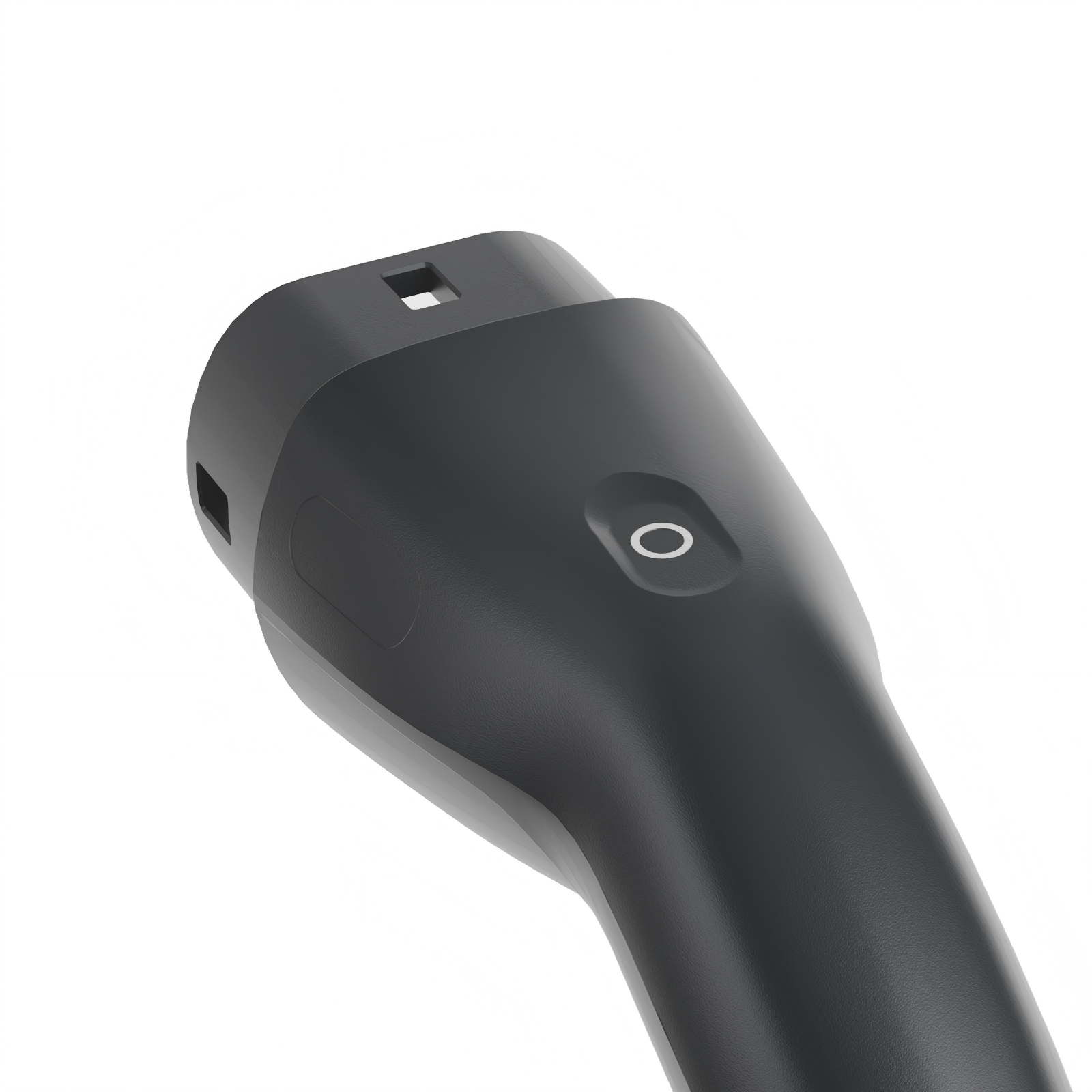

The products has extra functions option: Tesla UHF, support all Tesla cars, once you press the button on the charger connector, the charging socket of the car will open. Only Type 2 / NACS Portable EV Charger available.
Also we can add a Led on the connector, so you do not worry about use in the dark.
Specification of YT-IP2-24-AC1.0-16AS-B portable EV charger
| Product Name | Portable EV Charger(LCD Screen)with Type 2 plug | |
| Electric Parameters | Rated Voltage | 230V AC |
| Rated Current | 6-16A AC,1phase | |
| Frequency | 50Hz | |
| Insulation Resistance | >1000mΩ | |
| Terminal Temperature Rise | <50K | |
| Withstand Voltage | 2500V | |
| Contact Resistance | 0.5mΩ Max | |
| RCD | Type A+DC6mA | |
| Mechanical Performance | Mechanical Life | >10000 times no-load plug in/out |
| Coupled Insertion Force | 45N-100N | |
| Withstandable Impact | Dropping from a 1m-height and running-over by a 2T vehicle | |
| Material | Enclosure | Thermoplastic,UL94 V-0 flame retardant grade |
| Cable Material | TPU | |
| Terminal | Silver-plated copper alloy | |
|
Safety and Warranty |
Ingress Protection | IP55 for the EV connector and IP66 for the control box |
| Certificates | CE TUV UKCA CB | |
| Standard Warranty | 2 years | |
| Environment | Working Temperature | -25°C~+30°C |
| Working Humidity | ≤95%RH | |
| Working Altitude | <2000m | |
Package of Portable EV charger
Features of Types 2 Portable EV charger
The portable EV charger provides you with the necessary power in a reliable and user-friendly manner. Its sturdy design is specifically engineered to withstand challenging conditions. Equipped with a high-quality charging cable and an intuitive interface that promotes energy efficiency, this charger streamlines your everyday charging routine and reduces your energy expenses. Moreover, it can effortlessly connect to existing power infrastructure both at home and in outdoor environments.
