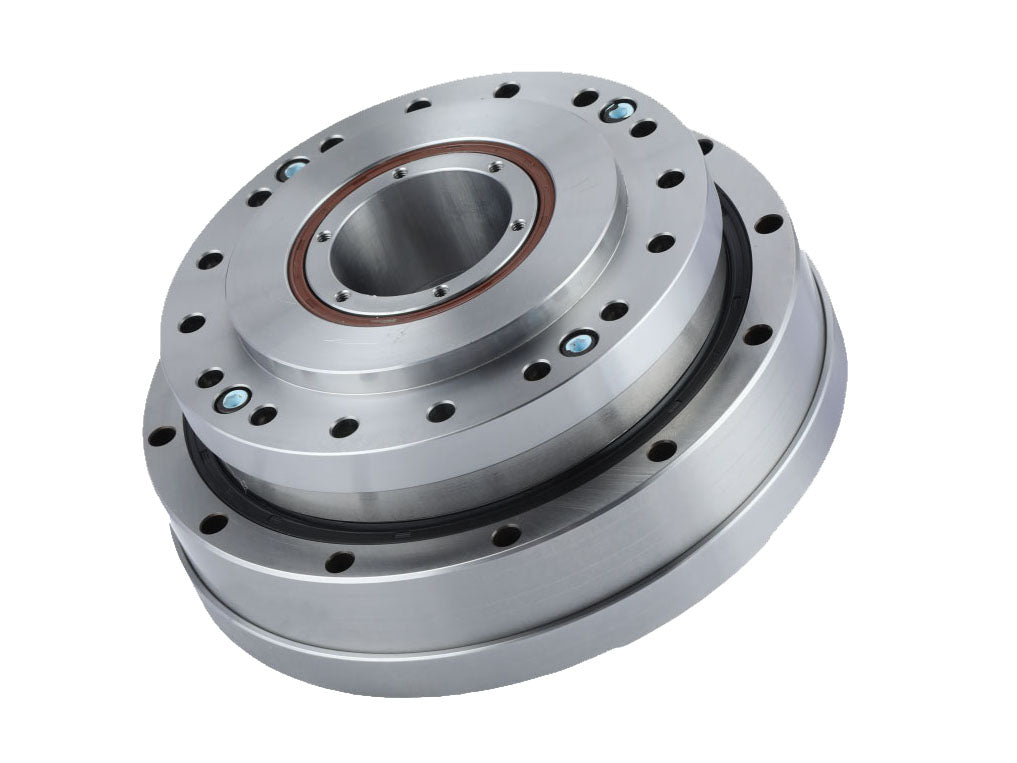

The FHG-III series harmonic drive gear box features a large hollow shaft structure. It adopts an integrated sealed flange design that combines harmonic drive components into a single unit, pre-filled with specialized lubricating grease for simplified equipment assembly. A high-rigidity cross roller bearing (main bearing) is integrated internally. This system is typically configured with either fixed circular spline and flexspline output or fixed flexspline and circular spline output.

Specification of FHG Harmonic Drive Gearbox

FHG-III-14 pdf               FHG-III-14 STP

FHG-III-17 pdf               FHG-III-17 STP

FHG-III-20 pdf               FHG-III-20 STP

FHG-III-25 pdf               FHG-III-25 STP

FHG-III-32 pdf               FHG-III-32 STP

FHG-III-40 pdf               FHG-III-40 STP

odel	Reduction ratio	Rated torque at 2000r/min input		Permissible peak torque at start and stop		Permissible maximum value for average load    torque		Permissible maximum value for average load  torque		Permissible maximum input rotational speed(Grease)		Backlash	weight	Desian life
		Nm	kgfm	Nm	kgfm	Nm	kgfm	Nm	kgfm	r/min	r/min	Arc Sec	kg	Hour
14	50	7	0.7	23	2.3	9	0.9	46	4.7	8500	3500	≤20	FHG-I/II:0.40 FHG-III:0.7 FHG-IV:0.66 FHG-V:0.40	10000
	80	10	1.0	30	3.1	14	1.4	61	6.2					15000
	100	10	1.0	36	3.7	14	1.4	70	7.2					15000
	120	10	1.0	36	3.7	14	1.4	70	7.2					15000
17	50	21	2.1	44	4.5	34	3.4	91	9	7300	3500	≤20	FHG-I/II:0.54 FHG-III:0.99 FHG-IV:0.90 FHG-V:0.62	10000
	80	29	2.9	56	5.7	35	3.6	113	12					15000
	100	31	3.2	70	7.2	51	5.2	143	15					15000
	120	31	3.2	70	7.2	51	5.2	112	11					15000
20	50	33	3.3	73	7.4	44	4.5	127	13	6500	3500	≤20	FHG-I/II:0.72 FHG-III:1.32 FHG-IV:1.29 FHG-V:0.82	10000
	80	44	4.5	96	9.8	61	6.2	165	17					15000
	100	52	5.3	107	10.9	64	6.5	191	20					15000
	120	52	5.3	113	11.5	64	6.5	191	20					15000
	160	52	5.3	120	12.2	64	6.5	191	20					15000
25	50	51	5.2	127	13	72	7.3	242	25	5600	3500	≤20	FHG-I/II:1.22 FHG-III:2.02 FHG-IV:1.99 FHG-V:1.40	10000
	80	82	8.4	178	18	113	12	332	34					15000
	100	87	8.9	204	21	140	14	369	38					15000
	120	87	8.9	217	22	140	14	395	40					15000
32	50	99	10	281	29	140	14	497	51	4800	3500	≤20	FHG-I/II:2.54 FHG-IIV:4.20 FHG-IV:4.00 FHG-V:2.70	10000
	80	153	16	395	40	217	22	738	75					15000
	100	178	18	433	44	281	29	841	86					15000
	120	178	18	459	47	281	29	892	91					15000
40	50	178	18	523	53	255	26	892	91	4000	3000	≤20	FHG-I/IV:4.40 FHG-III:7.20 FHG-IV:7.00 FHG-V:4.06	10000
	80	268	27	675	69	369	38	1270	130					15000
	100	345	35	738	75	484	49	1400	143					15000
	120	382	39	802	82	586	60	1530	156					15000

FHG Harmonic Drive Gearbox Manufacturer Introduction

HONPINE is a Chinese integrated manufacturer combining “Harmonic Drive + Nabtesco + actuator” technologies. It provides precision transmission solutions for numerous manufacturers in robotics R&D, medical machinery, semiconductor equipment, CNC machinery, and other precision industries.
