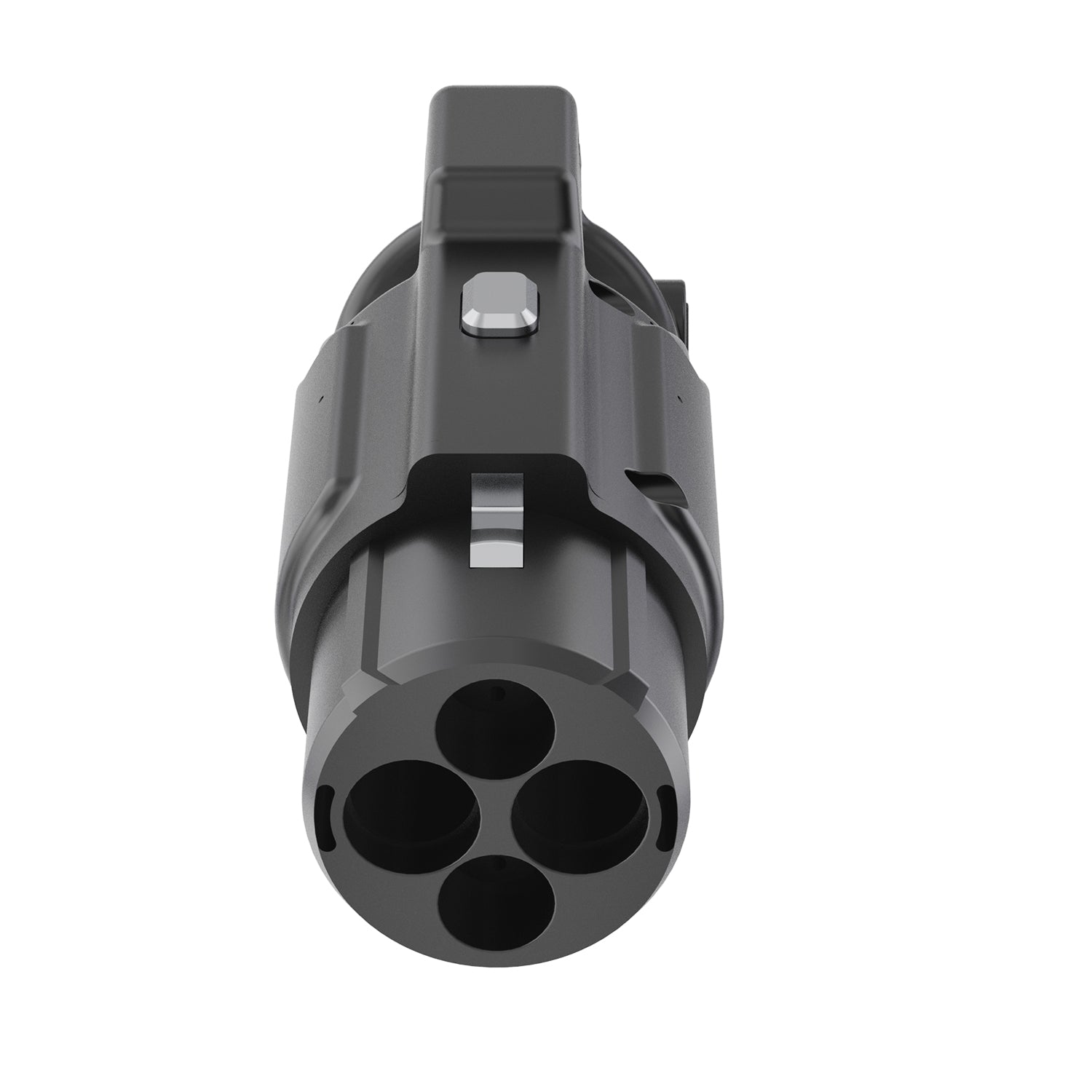

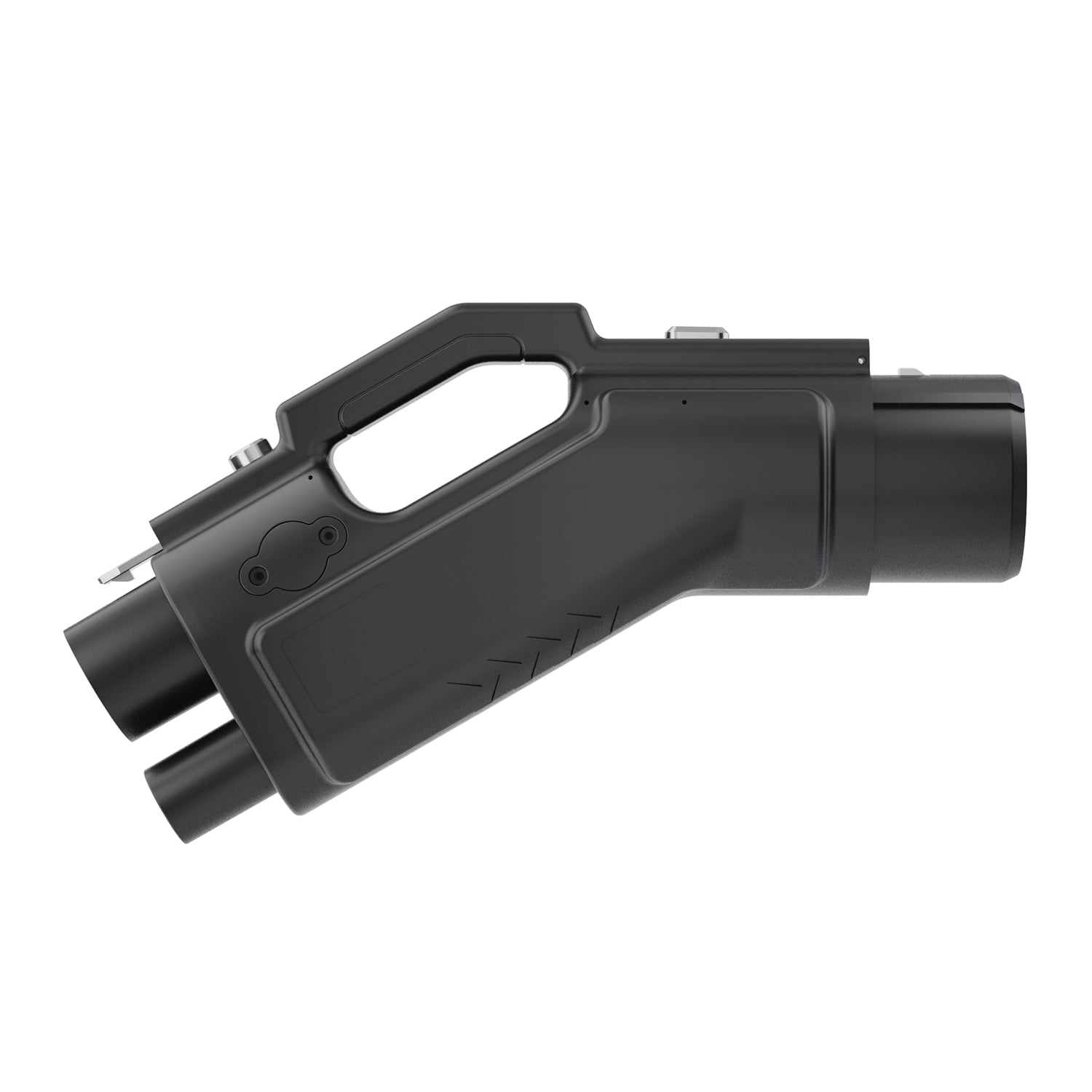

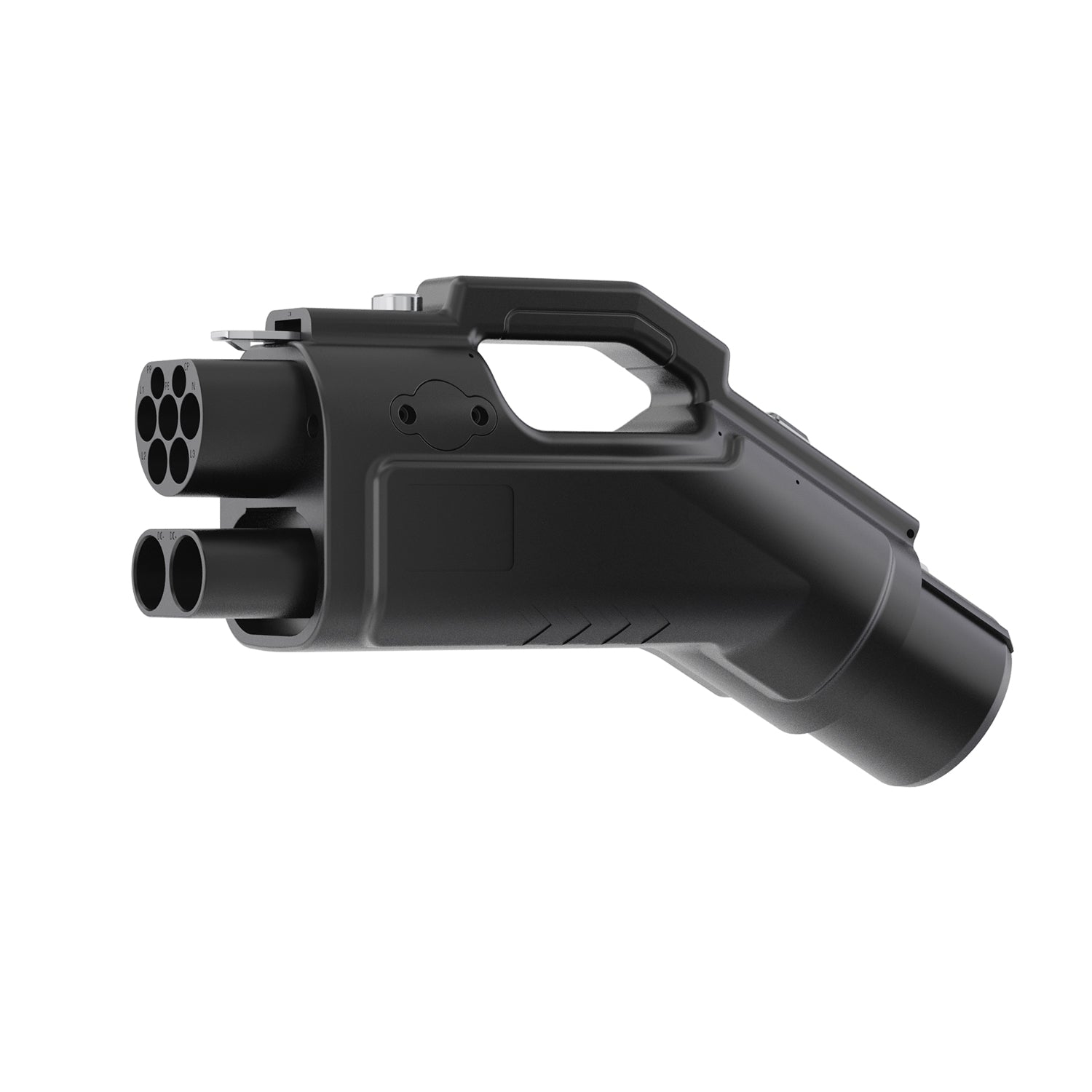

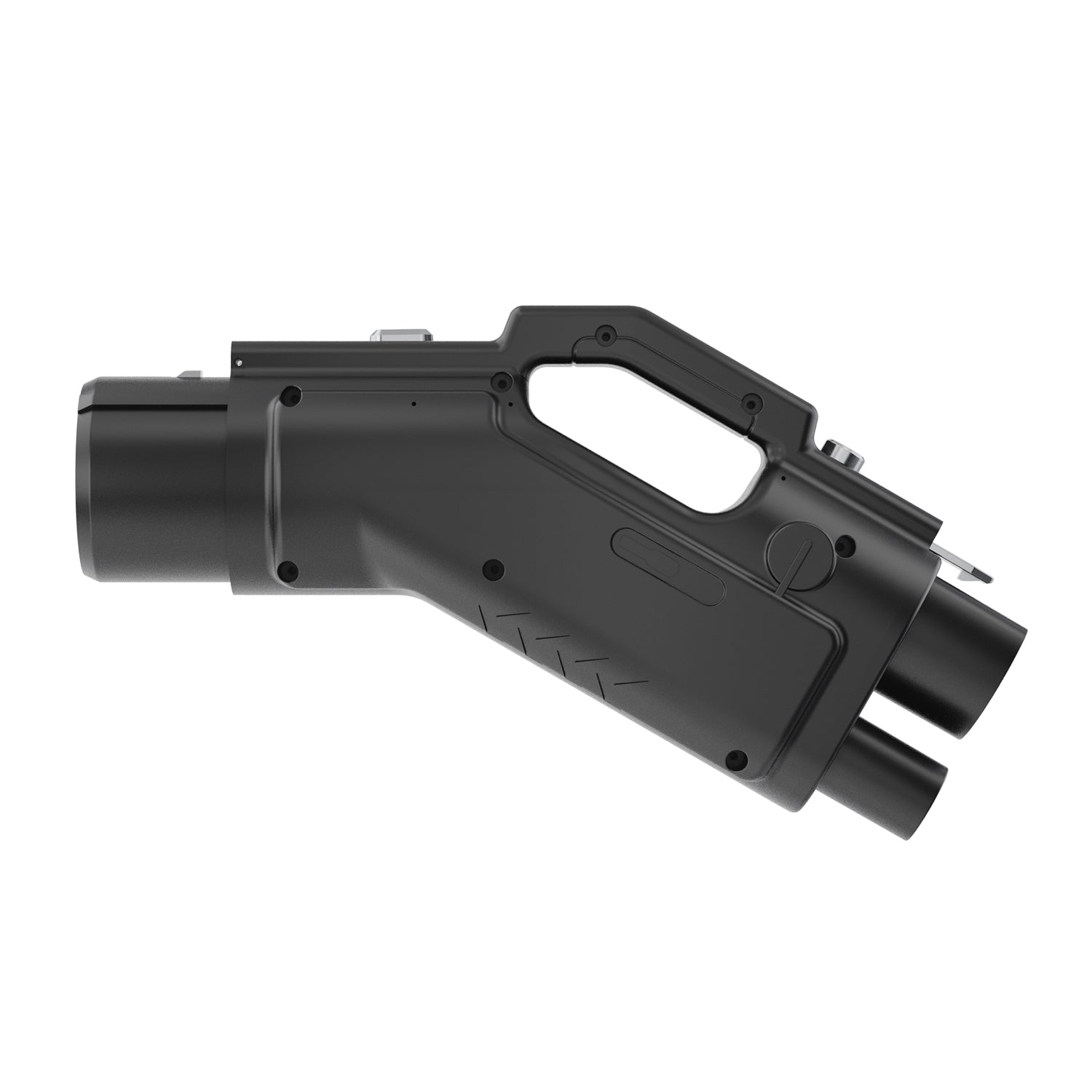

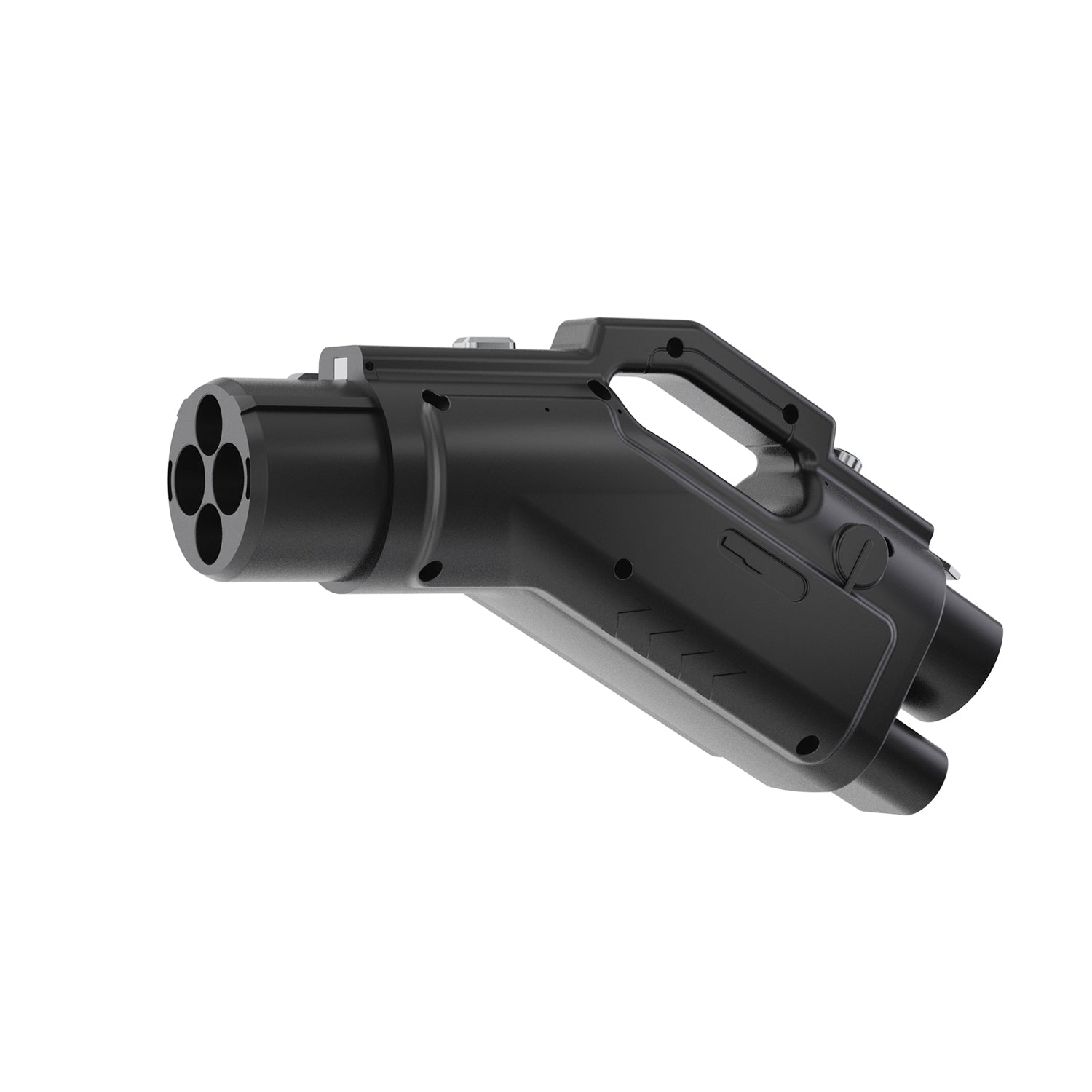

Description of 250A CCS2 to Chademo DC EV Adapter
Unlock New Charging Options for Your CHAdeMO Vehicle
Break free from compatibility limitations with our CCS2 to CHAdeMO adapter. This robust adapter allows vehicles with a CHAdeMO inlet (such as the Nissan Leaf and Mitsubishi Outlander PHEV) to access the rapidly expanding European CCS2 fast-charging network.Its unique dust-proof and rain-proof design enables it to be used worry-free in outdoor environments.
Product Destail of CCS2 to Chademo DC EV Adapter
| Product Size | 265.5mm(L)*96mm(W)*145.5mm(H) |
| Unit Net Weight | 1.5Kg |
| Unit Package Size | |
| Gross Weight | 2Kg |
| Carton Size | 38*38*36.5 |
| Carton Quantity | 6 PCS |
| Carton Weight |
Parameter of CCS2 to Chademo DC EV Adapter
| Rated Current: | 250A Max |
| Power | 250KW Max |
| Input Voltage AC | 100-1000V |
| Standard | EN IEC 62196 |
| Output Detection | Over Temperature Protection; Ground Protection |
| LED | One LED indicator charging or malfunction. |
| USB | One type C for debug and update firmware. |
| Protection Grade | IP54 |
| Flame Retardant Rating |
UL94-V0 |
| Working Temperature | -30℃—+50℃ |
| Pins |
Copper alloy, silver plated |
| Insertion & Withdrawal Force | 45N<F<100N |
| Insertion life |
>10000次 Unload plug and unplug times >10000 times |
ccs2 to chademo ev adapter features
1. 99.99% Adaptability
2. Over temperature protection
